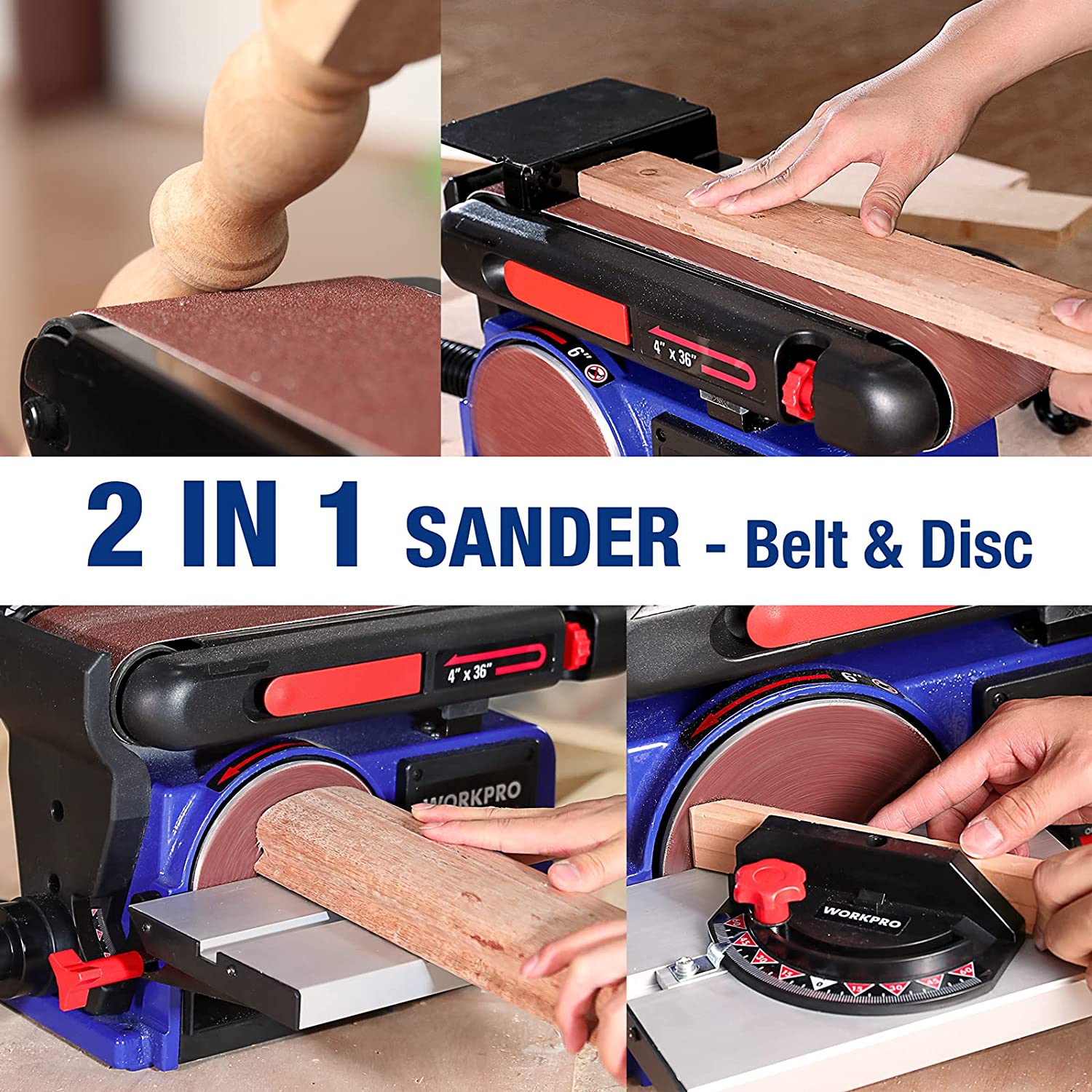

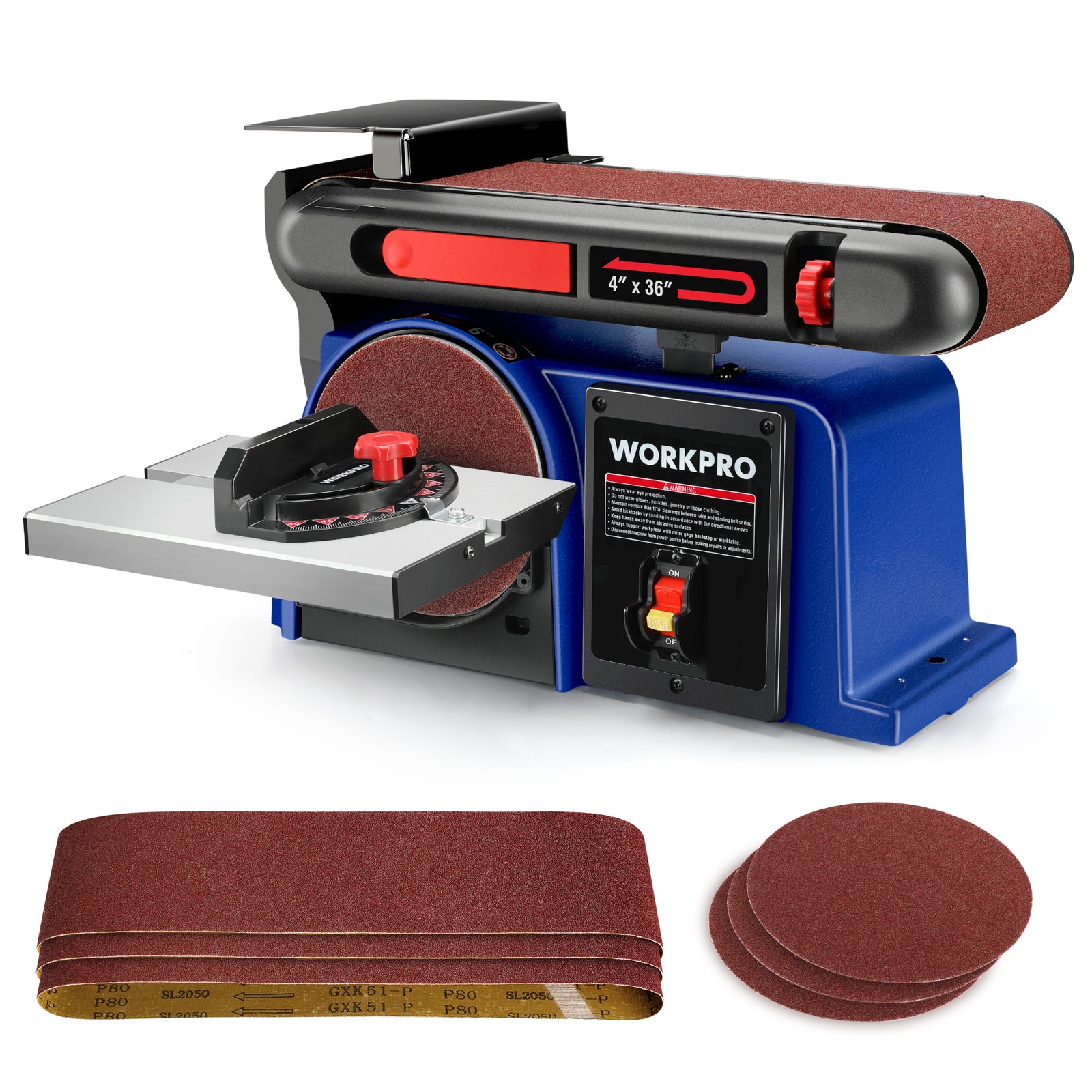

2 in 1 Sander: This sanding machine includes a 4 x 36-inch belt sander and a 6-inch sanding disc with an extra 3*belt and 3*disc, which meets your different applications, like wood. Woodworking will get a lot easier with the WORKPRO Belt/Disc Sander
Horizontal & Vertical: The benchtop sanding belt can be adjusted from horizontal to vertical providing different positions for sanding workpieces of different shapes and sizes. Using the hex key, loosen the positioning bolt and then adjust the position. Good helper for woodworking and all your DIY needs

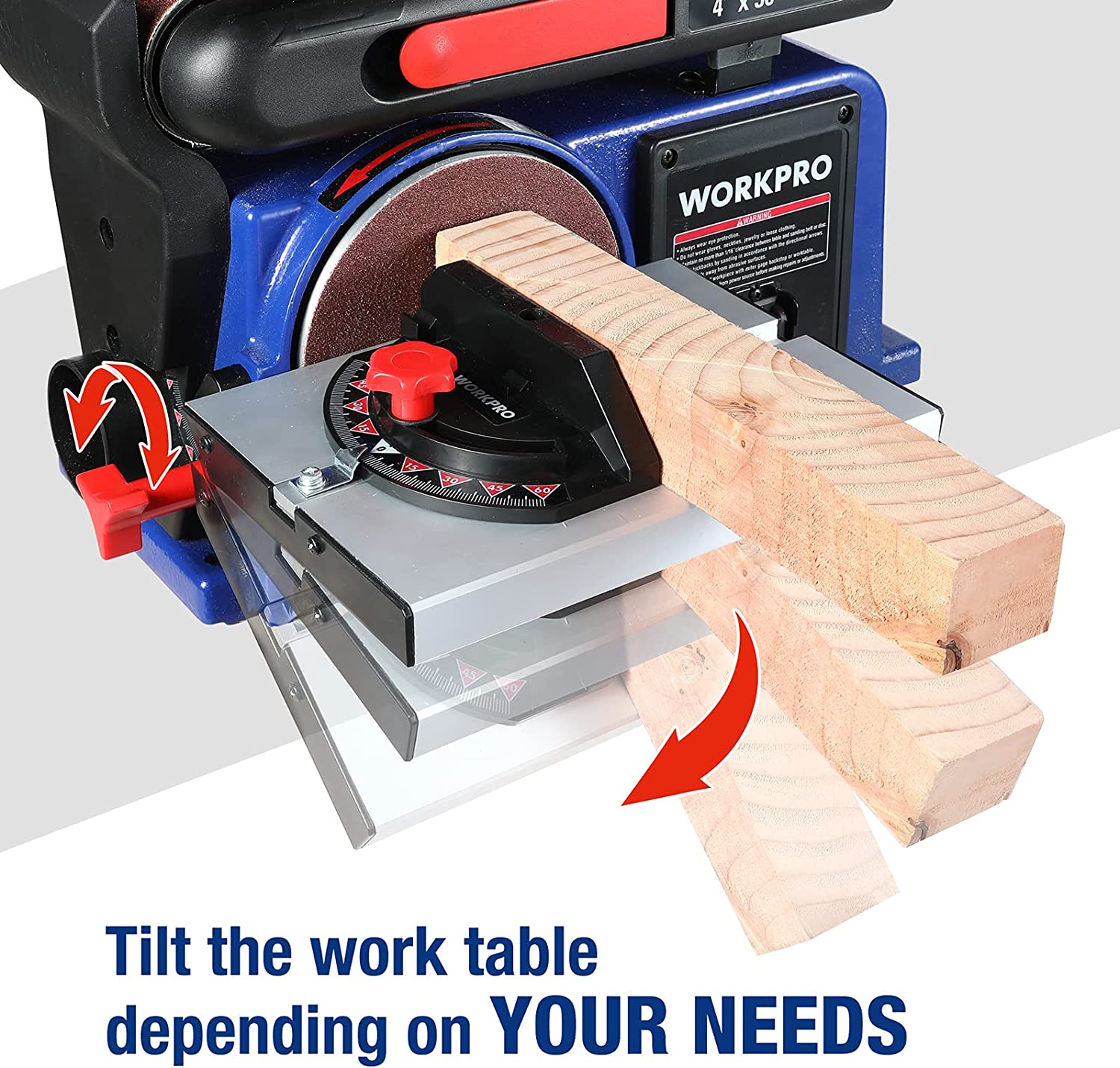

Multi-Angle Sanding: The worktable can be tilted from 0°-45° for bevel sanding. A miter gauge increases accuracy, which is recommended for sanding small end surfaces on the sanding disc
Powerful Motor: This sander is powerful with a 4.3 Amps 1/2 HP motor, providing 1900 SFM of belt speed and 3600 r/min.(RPM) of disc speed, which is more professional than other sanding machines

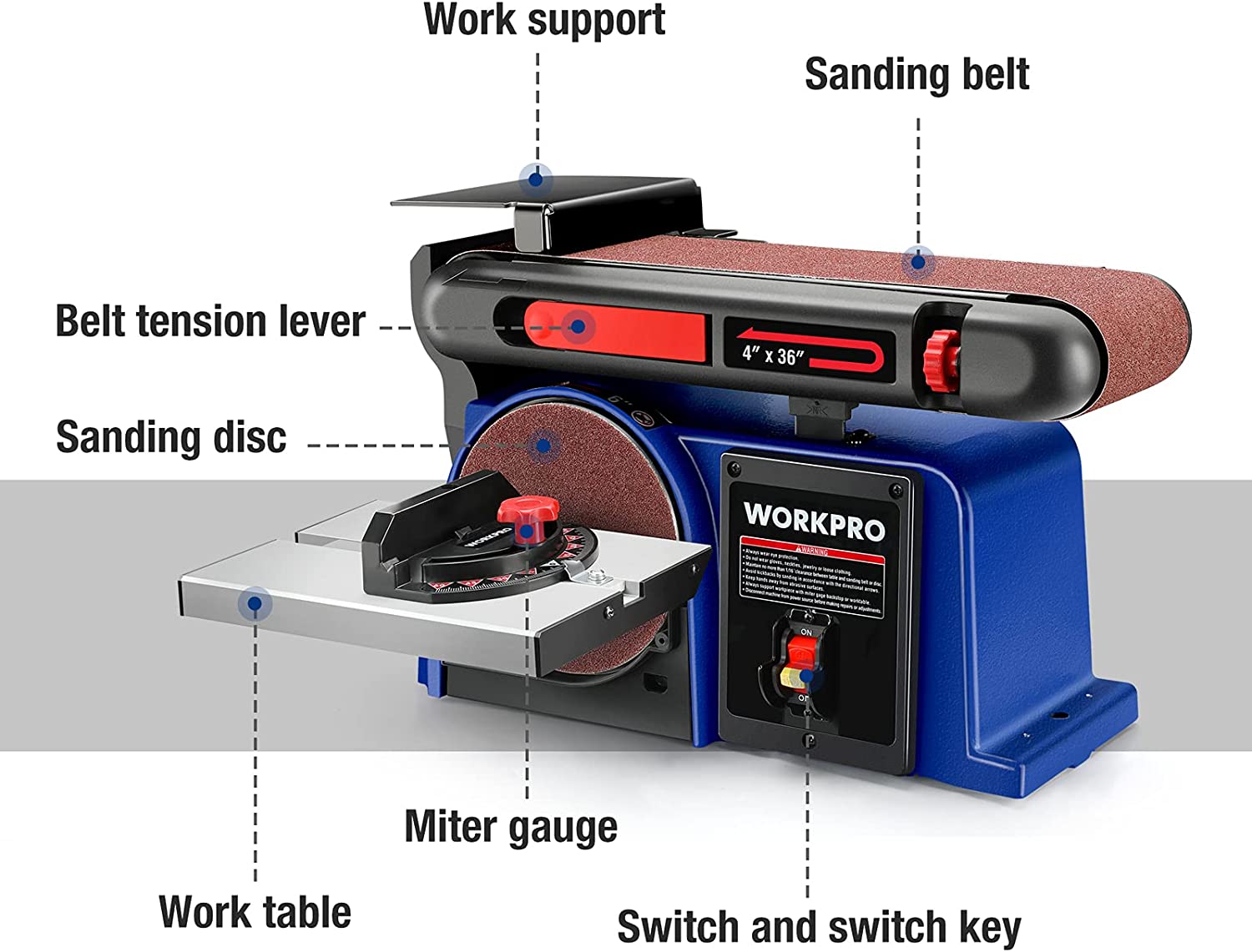

Great Design: The tension quick-release lever helps you switch and replace sandpaper. Dust port allows a dust-free operation when connecting with a dust collector. A sturdy base can be well fixed on the workbench, ensuring the sander stays stable while you're sanding

 |
 |
 |
|
The tension quick release lever helps you switch and replace sand paper grits as needed.
Note: pull the belt tension lever toward you to release the belt tension.
|

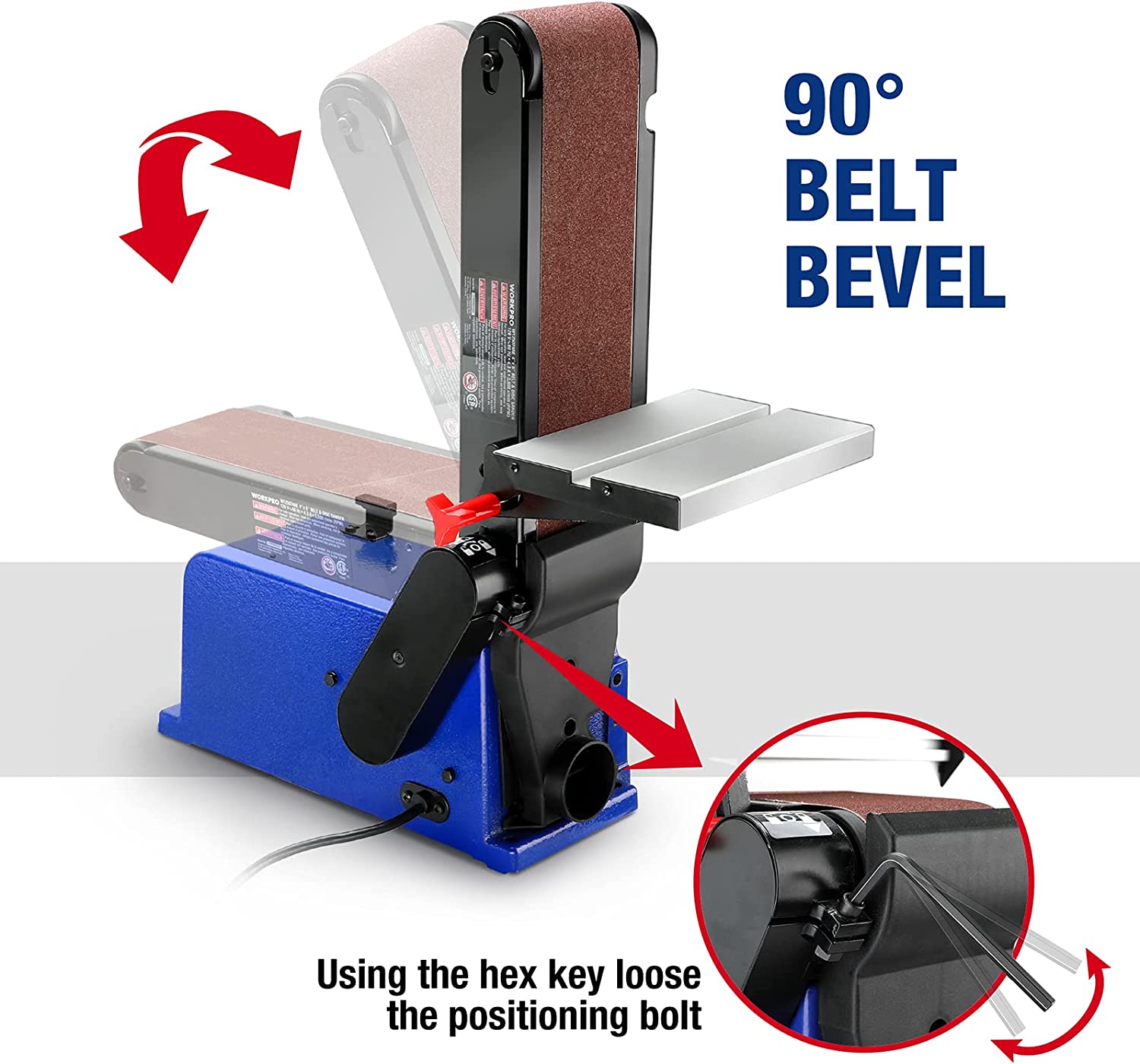

Turn the belt sander to vertical meets your different sanding needs.
Note: using the hex key provided, loosen the positioning bolt by turning the bolt counterclockwise.
|

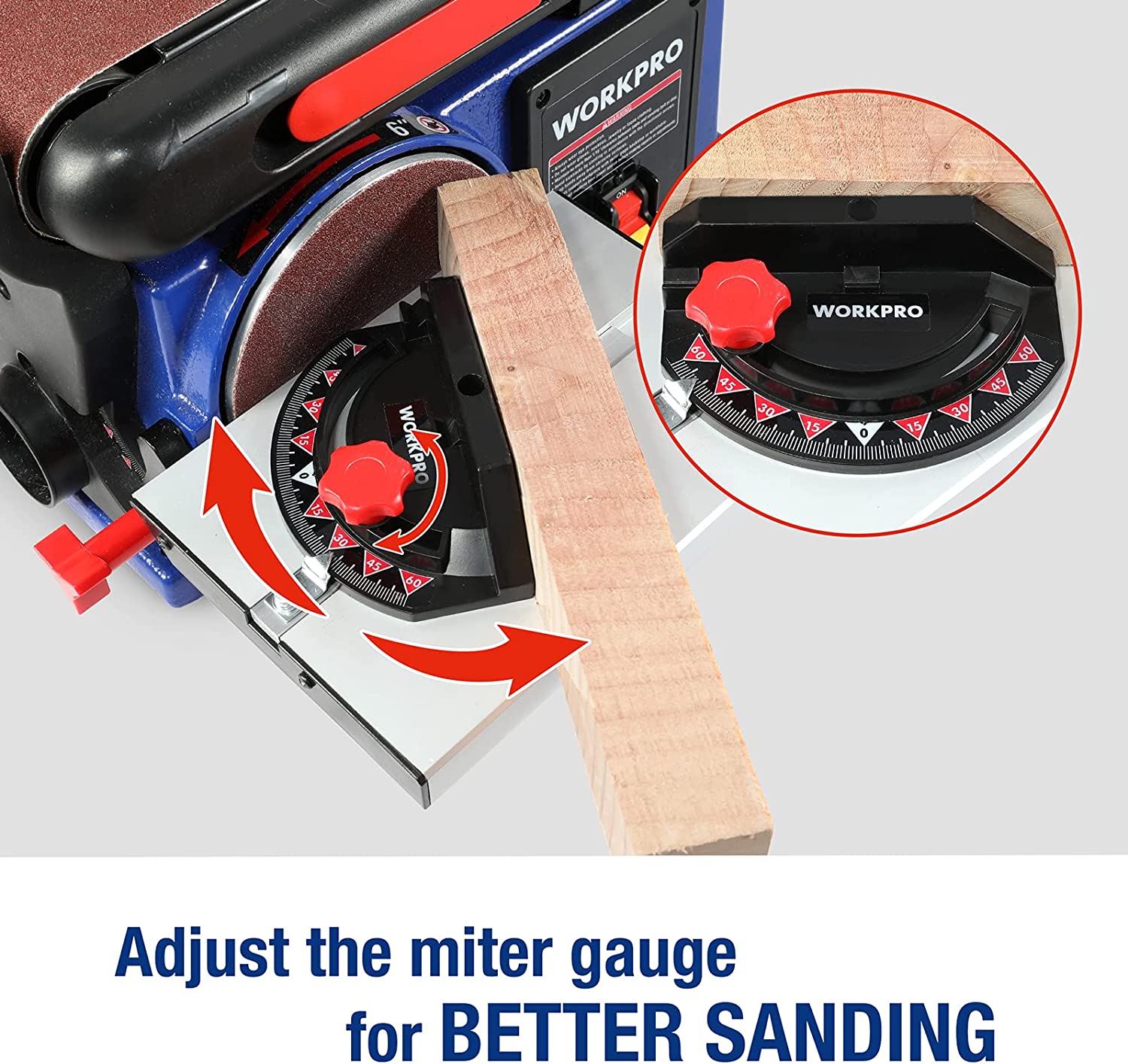

Sanding small end surfaces using the miter gauge, improving sanding work efficiency.
Note: Turn the red knob to adjust the miter gauge.
|
Installing/replacing sanding disc
1. Using he's key provided, loosen the positioning bolt.
2. Move the sanding belt into a vertical position,
3. Lock the sanding belt by tightening the positioning bolt.
4. Pull the belt tension lever toward you to release the belt tension.
5. Place the sanding belt over the drive roller and idler roller with the directional arrows running counterclockwise. Be sure the sanding belt is centered on both drums.
6. Push the belt tension lever back into place to apply the belt tension.
